🔌 Cisco Device Status Indicators

Status indicators are LED lights on Cisco routers, switches, and access points that show power status, link connectivity, data activity, and errors or faults. These indicators are widely used in devices from Cisco Systems.

1️⃣ Link Light Color

Link light color is the fastest troubleshooting tool on Cisco network devices. Without using CLI or software, just by observing the LED color, you can identify most physical and basic logical issues.

🔌 What Is a Link Light?

A link light (LED) is a small indicator near the Ethernet port that tells:

• If the cable is connected
• If the port is active
• If the connection is healthy
• If there is an error or block

Found on:

• Switch ports
• Router interfaces
• NIC (Network Interface Cards)
• Wireless access points

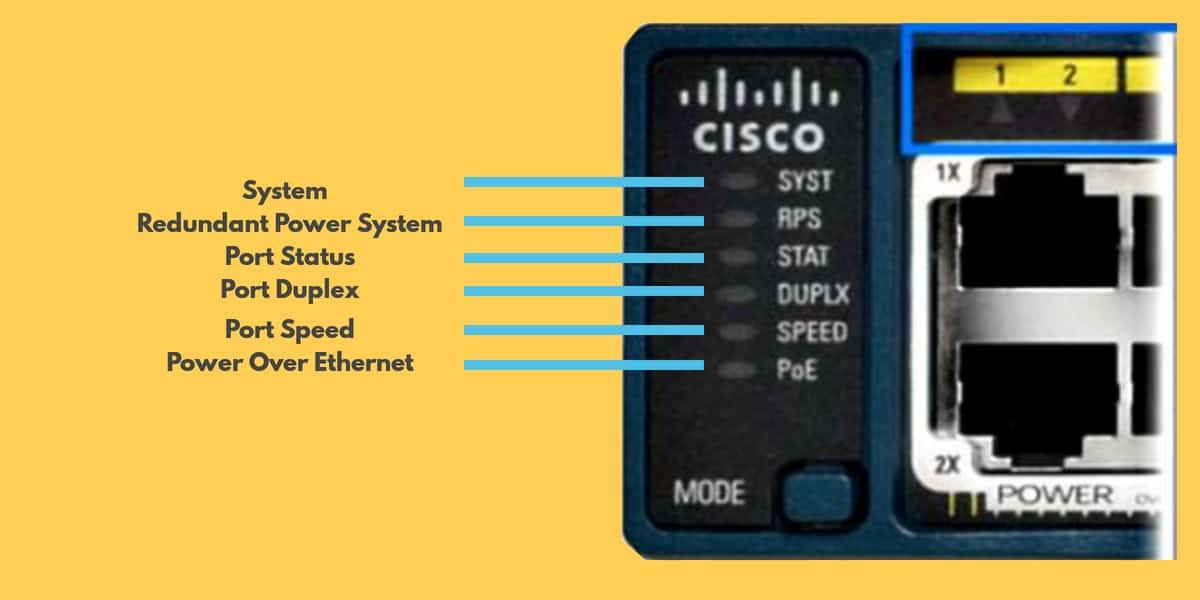

🎨 Link Light Colors Explained

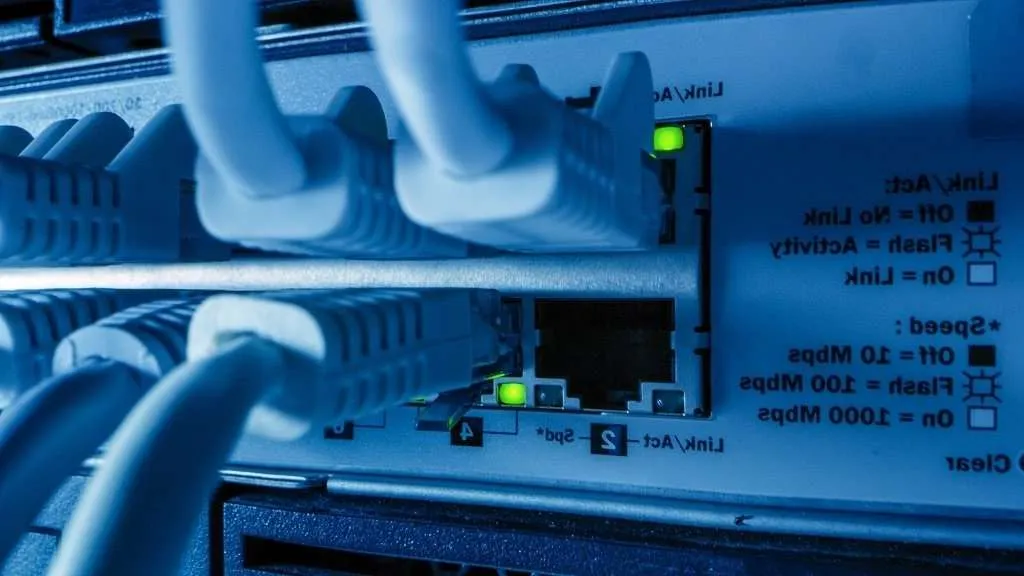

🟢 GREEN LIGHT — NORMAL / WORKING

What Green means:

• Physical connection is successful
• Port is enabled
• No error on the link
• Device is ready to communicate

Real-life examples:

• Home router LAN port → Green → Internet works
• Office PC → Switch → Router → All ports green → Network stable

Cisco Packet Tracer example:

• Connect PC to switch
• After a few seconds, LED turns green
• Ping works successfully

🟠 AMBER / ORANGE LIGHT — WAITING / BLOCKED / ISSUE

What Amber means:

• Port is initializing
• Spanning Tree Protocol (STP) is blocking
• Security violation
• Configuration issue

Real-life example:

• New PC plugged into office switch
• Port shows orange for ~30 seconds
• Then turns green

Reason: STP prevents network loops before allowing traffic.

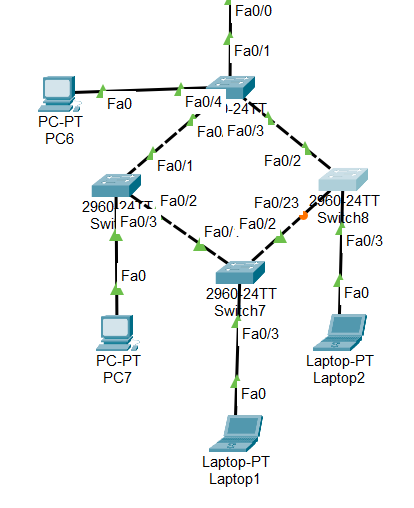

Cisco Packet Tracer example:

• Switch-to-switch connection
• Port turns orange
• After delay → turns green

Problem scenarios with Amber:

• Wrong VLAN
• Port security violation
• Port not in forwarding state

🔴 RED LIGHT — CRITICAL FAILURE (RARE)

What Red means:

• Serious hardware issue
• Port or device failure
• Power supply problem

Mostly seen in:

• Enterprise routers
• Modular switches

Real-life example:

• Data center switch power LED turns red
• Switch shuts down → Network outage

⚫ NO LIGHT — NO LINK / NO POWER

What No Light means:

• Cable unplugged
• Device powered off
• Port administratively disabled
• Faulty cable or NIC

Real-life example:

• PC not connecting
• Ethernet LED OFF
• Loose cable → Fix cable → Green light appears

Packet Tracer example:

• Cable removed → No LED
• Port shutdown command → No LED

📊 Quick Comparison Table (Exam Ready)

✨ Blinking vs Solid States

Understanding blinking vs solid LEDs tells you whether data is flowing or not. This is a core CCST exam topic and extremely useful in real-world troubleshooting on devices from Cisco Systems.

🔌 What Do LED States Mean?

After the link light color confirms the connection (green or amber), the LED behavior (solid or blinking) tells you what the link is doing.

🔵 SOLID LIGHT — LINK PRESENT, NO DATA

• Physical link is up
• Port is ready
• No data is currently passing

Packet Tracer: PC connected but idle → LED stays solid green

✨ BLINKING LIGHT — DATA IS FLOWING

• Data is being transmitted
• Traffic is flowing
• Link is actively used

Packet Tracer: Ping running → LEDs blink continuously

🟢 Solid Green vs Blinking Green

🟠 Amber Blinking vs Solid Amber

🟠 Solid Amber

• Port blocked
• Not forwarding traffic
• Usually due to STP

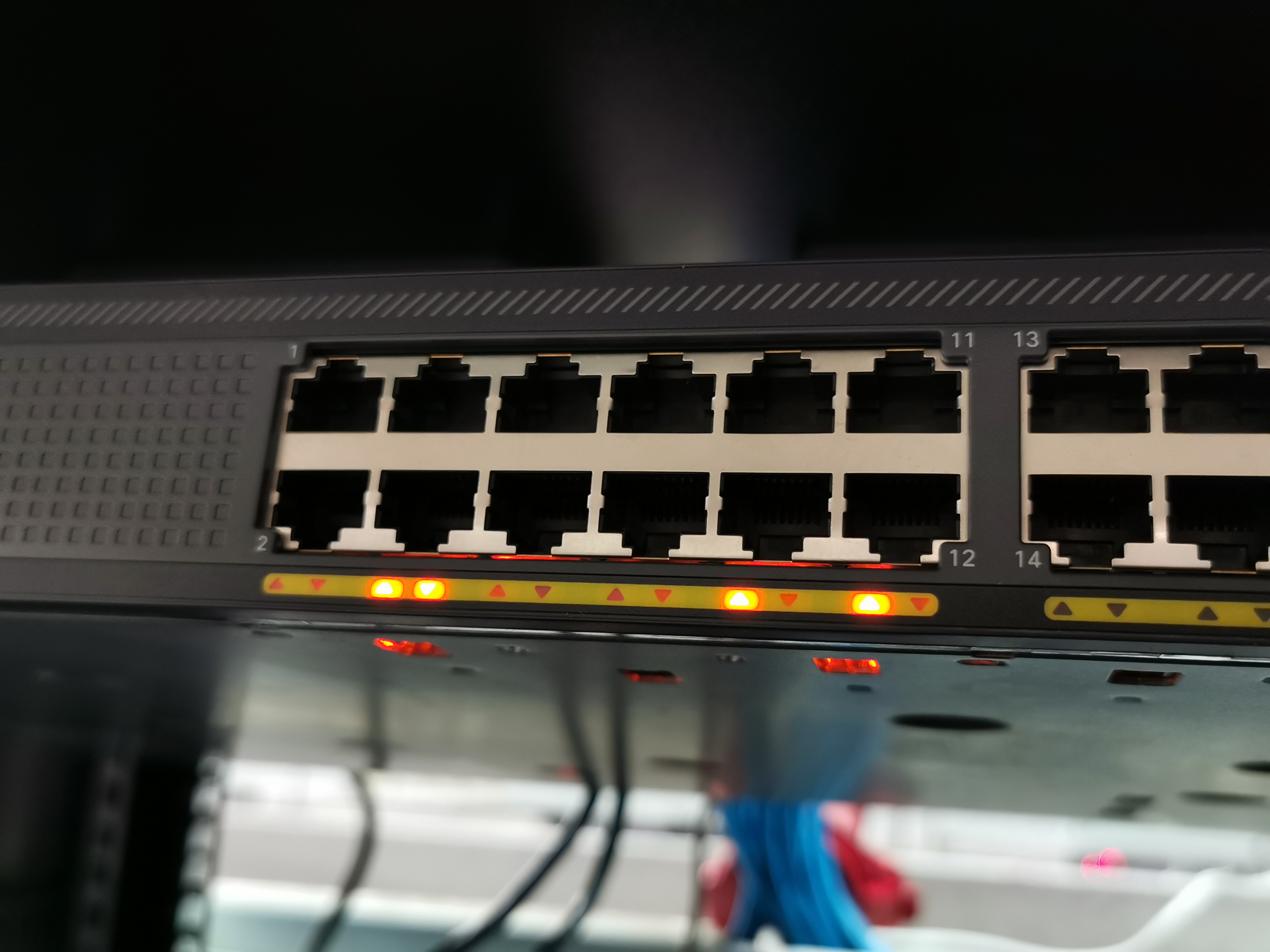

🟠 Blinking Amber

• Port initializing
• Temporary state
• STP convergence

⚫ OFF vs BLINKING

🧠 Real-World Troubleshooting Scenarios

🔧 Internet Slow

LED blinking very fast → Network congestion → Check bandwidth

🔧 Can’t Ping

LED solid green, no blinking → Check IP / firewall

🔧 New Switch Connection

LED blinking amber → Wait for STP convergence
