Network Applications & Protocols

Learn how TCP vs UDP works and understand key protocols like FTP, HTTP, DHCP, DNS, ICMP, and NTP.

Network Protocols

🔹 What are Network Protocols?

A network protocol is a set of rules and standards that devices follow to communicate with each other over a network.

👉 Just like humans need a common language to talk, computers need protocols to exchange data.

🧠 Why Network Protocols Are Needed

Imagine this situation:
  • One device sends data too fast
  • Another device expects data slowly
  • One device sends data in English
  • Another understands only Hindi
❌ Communication fails
📌 Protocols solve this problem by defining:
  • How data should look
  • When data should be sent
  • What to do if something goes wrong

Network Protocols Across OSI Model

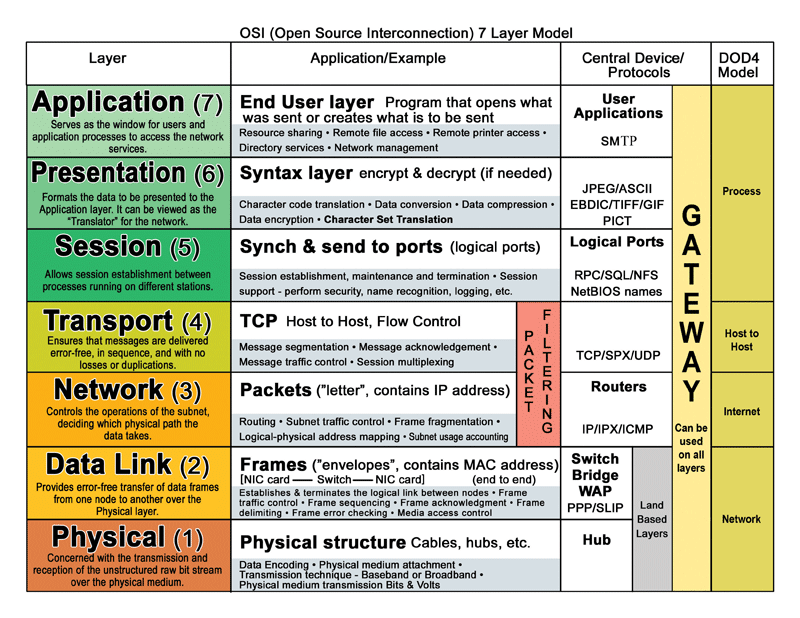

OSI Model with Protocol Layers

🔧 What Exactly Do Network Protocols Decide?

1️⃣ How Data Is Sent 📤

Protocols define:
  • Data format (bits, frames, packets)
  • Order of data
  • Speed of transmission
📌 Example:
  • TCP sends data in sequence
  • UDP sends data without order

2️⃣ How Data Is Received 📥

Protocols decide:
  • How receiver understands data
  • How data is reassembled
  • How delivery is confirmed
📌 Example:
  • TCP sends ACK (Acknowledgment)
  • UDP does not confirm delivery

3️⃣ How Errors Are Handled ⚠️

Protocols define:
  • What happens if data is lost
  • What happens if data is corrupted
  • Whether data should be resent
📌 Example:
  • TCP retransmits lost packets
  • UDP ignores errors

🧩 Real-Life Analogy (VERY IMPORTANT 💡)

📮 Sending a Letter (Postal System)
Postal System Network Protocol
Address on envelope IP address
Registered post TCP
Normal post UDP
Post office rules Protocol rules

📌 Without postal rules → letters lost
📌 Without network protocols → data communication fails

Popular Network Protocols Overview

Popular Network Protocols Diagram

🔹 TCP vs UDP (VERY IMPORTANT)

🔵 TCP (Transmission Control Protocol)

✔ Reliable delivery
✔ Error checking
✔ Data arrives in order

Characteristics:
  • Slower
  • Connection-oriented
Used when accuracy matters:
  • Web browsing
  • Email
  • File transfer

🟠 UDP (User Datagram Protocol)

✔ Fast data transfer
❌ No delivery guarantee

Characteristics:
  • Faster
  • Connectionless
Used when speed matters:
  • Video streaming
  • Online games
  • Voice calls

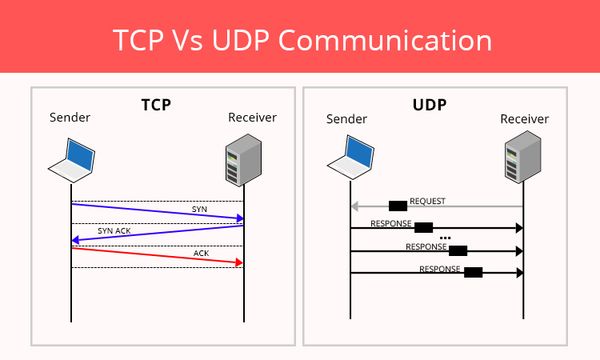

TCP vs UDP Comparison

TCP vs UDP
🧠 Exam Trick
Banking → TCP
YouTube → UDP

🔹 FTP, SFTP, TFTP (File Transfer)

FTP
• Not secure (plain text)
• Port: 21
• Rarely used today
SFTP
• Secure (uses SSH encryption)
• Port: 22
• Preferred in companies
TFTP
• Very simple
• No authentication
• Port: 69 (UDP)
• Used for router/switch configs

🔹 HTTP & HTTPS

HTTP
• No encryption
• Port: 80
HTTPS
• Encrypted (SSL/TLS)
• Port: 443
• Used by modern websites

🔹 DHCP & DNS (CORE SERVICES)

DHCP
Automatically assigns IP, subnet, gateway, DNS
📌 Without DHCP → manual IP needed
DNS
Converts name to IP
google.com → 142.250.182.14
🧠 Exam Trap
DNS does ❌ NOT assign IP
DHCP does ❌ NOT convert names

🔹 ICMP & NTP (Support Tools)

ICMP
• Error reporting
• Used by ping & traceroute
NTP
• Synchronizes time
• Important for logs & security

🧠 MASTER TABLE (EXAM READY)

ProtocolPurposePort
TCPReliable delivery—
UDPFast delivery—
FTPFile transfer21
SFTPSecure file transfer22
TFTPDevice config69
HTTPWeb80
HTTPSSecure web443
DHCPIP assignment67/68
DNSName resolution53
ICMPPing / errors—
NTPTime sync123

🛠️ CCST Troubleshooting Scenarios

❌ Website not opening → Check DNS / HTTPS
❌ PC has no IP → Check DHCP
❌ Can’t ping server → ICMP blocked / network issue
❌ File transfer insecure → Use SFTP, not FTP
🧠 Memory Tricks

DHCP = Gives IP
DNS = Names to IP
HTTPS = Secure
ICMP = Ping
NTP = Time
