Network types & topologies

Understanding different network configurations

Network Types

🏠 1️⃣ LAN – Local Area Network

A LAN (Local Area Network) connects devices within a small area like: home, office, or school lab.

📌 Covers one building or room

Local Area Network (LAN)

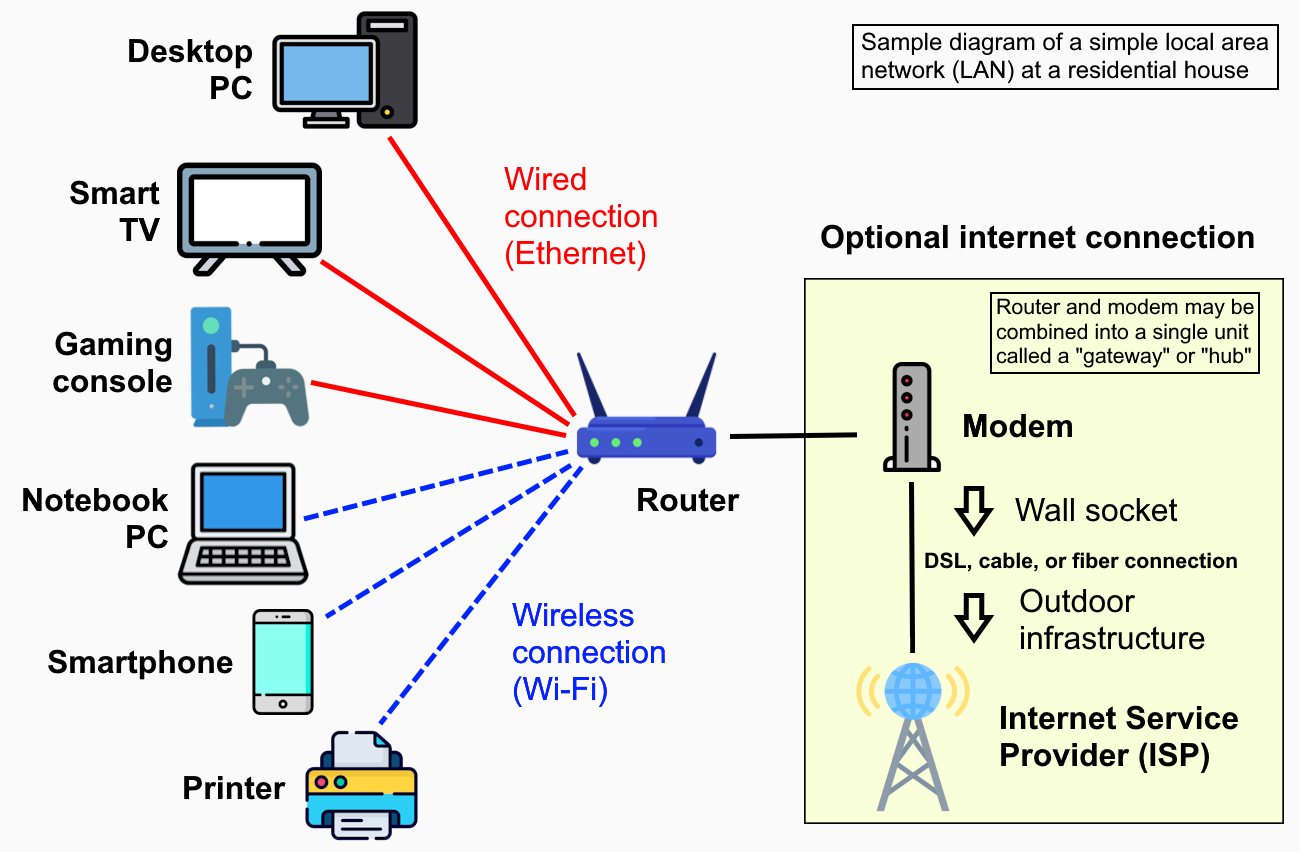

LAN Network
🧠 Examples
  • Computers in your home connected to Wi-Fi
  • Office PCs connected to a switch
✅ Advantages
  • Very fast (high throughput)
  • Low latency
  • Easy to manage
  • Low cost
❌ Disadvantages
  • Limited area
  • Needs maintenance
  • Security depends on admin
📌 CCST Tip: LAN = Switch + Ethernet / Wi-Fi

🌍 2️⃣ WAN – Wide Area Network

A WAN (Wide Area Network) connects networks across large distances such as cities, countries, or continents.

📌 Internet is the biggest WAN

Wide Area Network (WAN)

WAN Network
🧠 Examples
  • Bank branches connected across India
  • Office in India connected to a US server
✅ Advantages
  • Global connectivity
  • Resource sharing over distance
❌ Disadvantages
  • Expensive
  • Higher latency
  • Slower than LAN
  • ISP dependent
📌 CCST Tip: WAN = Router + ISP

🏙️ 3️⃣ MAN – Metropolitan Area Network

A MAN (Metropolitan Area Network) covers a city-sized area.

📌 Bigger than LAN, smaller than WAN

Metropolitan Area Network (MAN)

MAN Network
🧠 Examples
  • City-wide cable TV network
  • University campuses across a city
✅ Advantages
  • High-speed city connectivity
  • Cost-effective compared to WAN
❌ Disadvantages
  • More complex than LAN
  • Security challenges
📌 CCST Tip: MAN is rare but important for exams

🏫 4️⃣ CAN – Campus Area Network

A CAN (Campus Area Network) connects multiple LANs within a campus.

📌 Controlled by one organization
🧠 Examples
  • College with multiple buildings
  • IT company campus
✅ Advantages
  • High speed
  • Centralized control
  • Better security than WAN
❌ Disadvantages
  • Costly infrastructure
  • Limited to campus
📌 CCST Tip: CAN = Multiple LANs + one owner

📱 5️⃣ PAN – Personal Area Network

A PAN (Personal Area Network) connects devices around one person.

📌 Range: Few meters

Personal Area Network (PAN)

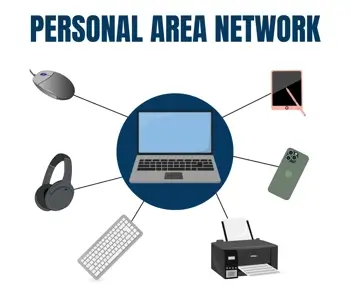

PAN Network
🧠 Examples
  • Bluetooth headphones
  • Phone connected to smartwatch
  • Laptop hotspot
✅ Advantages
  • Very low cost
  • Easy to set up
  • Portable
❌ Disadvantages
  • Very short range
  • Low speed
📌 CCST Tip: PAN usually uses Bluetooth

📡 6️⃣ WLAN – Wireless LAN

A WLAN is a wireless version of LAN using Wi-Fi instead of cables.

WLAN (Wireless LAN)

WLAN Network
🧠 Examples
  • Home Wi-Fi
  • Café Wi-Fi
  • Office Wi-Fi
✅ Advantages
  • No cables
  • Easy mobility
  • Flexible
❌ Disadvantages
  • Lower throughput than wired LAN
  • Interference
  • Security risks
📌 CCST Tip: WLAN = LAN + Wireless

🧩 Quick Comparison Table (Exam Friendly)

Network Type Area Covered Example
PAN Few meters Bluetooth
LAN Building Home / Office
WLAN Building Wi-Fi
CAN Campus College
MAN City Cable network
WAN Country / World Internet
🧠 Memory Trick (Very Easy)

Please Let College Make World
PAN → LAN → CAN → MAN → WAN

Network Topologies

⭐ CCST GOLD LINE

Topology = How devices are connected and how data flows
There are two views:
  • Physical topology → Actual cable & device layout
  • Logical topology → How data moves (often different)

⭐ 1️⃣ Star Topology (MOST COMMON)

In a Star Topology, all devices connect to one central device such as a switch or hub.

PC ─┐
PC ─┼── Switch ── Internet
PC ─┘

Star Topology

Star Topology
🧠 Where you see it
  • Home networks
  • Offices
  • Labs
✅ Advantages
  • Easy to install & manage
  • One cable failure affects only one device
  • Easy troubleshooting
  • High performance with switch
❌ Disadvantages
  • Central device failure = whole network down
  • More cables required
📌 CCST Tip: Star topology is the default choice today

🚌 2️⃣ Bus Topology

In a Bus Topology, all devices share one main cable called the backbone.

PC ──── PC ──── PC ──── PC

Bus Topology

Bus Topology
🧠 Where you see it
  • Old networks
  • Small temporary setups
✅ Advantages
  • Low cost
  • Simple design
❌ Disadvantages
  • Backbone cable failure = whole network down
  • Hard to troubleshoot
  • Collisions happen
  • Poor scalability
📌 CCST Tip: Rare today, but asked in exams

🔁 3️⃣ Ring Topology

In a Ring Topology, each device connects to two others, forming a circular ring.

PC → PC → PC → PC → back to PC

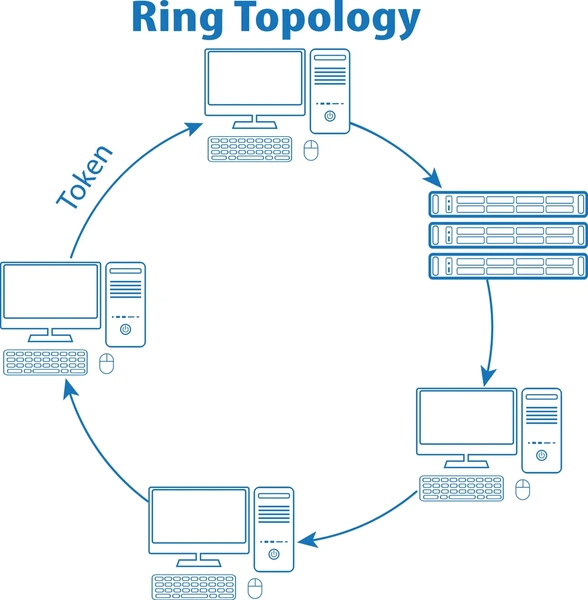

Ring Topology

Ring Topology
🧠 Where you see it
  • Old telecom systems
  • Token Ring (IBM – historical)
✅ Advantages
  • No collisions
  • Equal access for all devices
❌ Disadvantages
  • One device failure breaks the ring
  • Difficult to add/remove devices
  • Slower than star topology
📌 CCST Tip: Token passes one-by-one

🕸️ 4️⃣ Mesh Topology

In a Mesh Topology, devices connect to many or all other devices.

Types:
  • Full Mesh → Every device connects to every device
  • Partial Mesh → Some devices are fully connected

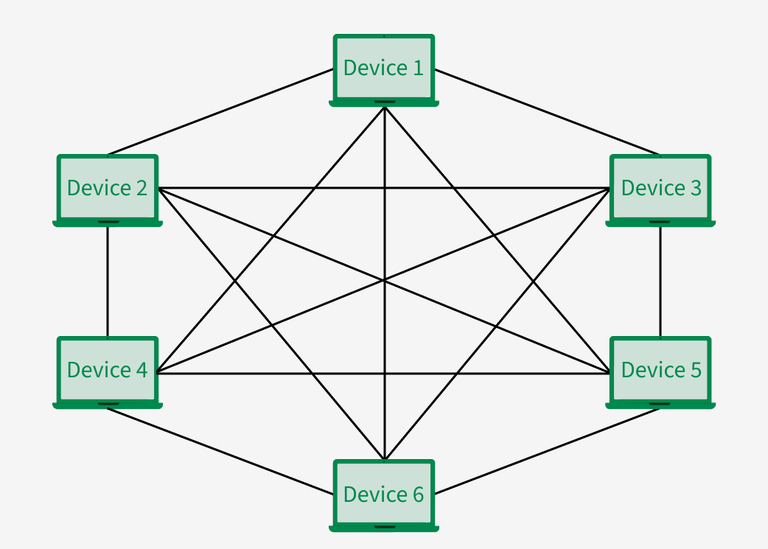

Mesh Topology

Mesh Topology
🧠 Where you see it
  • Data centers
  • WAN links
  • Wireless mesh networks
✅ Advantages
  • Very reliable
  • No single point of failure
  • Best fault tolerance
❌ Disadvantages
  • Very expensive
  • Complex cabling
  • Hard to manage
📌 CCST Tip: Used where reliability is critical

🔀 5️⃣ Hybrid Topology

A Hybrid Topology is a combination of two or more topologies.

🧠 Examples
  • Star + Bus
  • Star + Mesh
🧠 Where you see it
  • Large organizations
  • Enterprises
  • Campuses
✅ Advantages
  • Flexible
  • Scalable
  • Reliable
❌ Disadvantages
  • Complex design
  • Higher cost
📌 CCST Tip: Real networks are often hybrid

🧩 Comparison Table (Exam Ready)

Topology Cost Reliability Used Today
Star Medium High ✅ Yes
Bus Low Low ❌ Rare
Ring Medium Medium ❌ Rare
Mesh Very High Very High ✅ Yes
Hybrid High High ✅ Yes

Physical vs Logical Topology

⭐ CCST GOLD LINE

Physical topology = How devices are physically connected
Logical topology = How data actually flows

In networking, topology can be viewed in two different ways. Many students get confused, but once you understand this section, troubleshooting becomes very easy.

🔌 Physical Topology

Physical topology refers to the actual layout of cables, devices, and hardware.

🧠 Think of physical topology as:
“What you can see and touch”
Includes:
  • Cables (Ethernet, fiber)
  • Switches
  • Routers
  • Physical device placement
🧠 Easy Example

• PCs connected to a switch using Ethernet cables
• Wi-Fi router placed in the center of the office

👉 This is physical topology
📌 Common Physical Topologies
  • Star
  • Bus
  • Ring
  • Mesh

🔄 Logical Topology

Logical topology describes how data moves inside the network, regardless of physical connections.

🧠 Think of logical topology as:
“How communication actually happens”
Controlled by:
  • Protocols
  • Network rules
  • Data flow logic
🧠 Easy Example

Even if computers are physically connected in a star, data may flow in a logical bus or logical ring depending on technology.
📌 Examples
  • Ethernet → Logical Bus
  • Token Ring → Logical Ring
  • Wi-Fi → Logical shared medium

🧩 Physical vs Logical Topology (Side-by-Side)

Feature Physical Topology Logical Topology
Definition Actual cable & device layout How data flows
Focus Hardware Communication
Visible? ✅ Yes ❌ No
Depends on Cables & devices Protocols & logic
Changes easily? ❌ Hard ✅ Easier

🛠️ CCST Troubleshooting Logic (VERY IMPORTANT)

❌ Problem: Network not working

Technician steps:
1️⃣ Check physical topology
  • Cable unplugged?
  • Switch powered ON?

2️⃣ Check logical topology
  • IP configured?
  • VLAN / routing issue?

👉 Physical first, logical next
🧠 Memory Trick (Exam Ready)

Physical = Hardware & cables
Logical = Data flow & rules
✅ CCST Exam Must-Knows

✔ Physical topology is visible
✔ Logical topology is invisible
✔ One physical topology can have different logical topology
✔ Always troubleshoot physical before logical
