Bandwidth vs Throughput

Understanding Network Performance Metrics

Bandwidth vs Throughput

⭐ Remember This Line (CCST GOLD)

Bandwidth = Capacity
Throughput = Actual speed

👉 If you remember only this, you’ll already score marks ✅

🛣️ Real-World Analogy (VERY IMPORTANT 💡)

🚗 Highway Example

Real Life Networking
Width of road Bandwidth
Cars actually moving Throughput

🛣️ 6-lane highway → High bandwidth
🚦 Traffic jam → Low throughput

📌 Wide road ≠ smooth traffic
📌 High bandwidth ≠ high speed

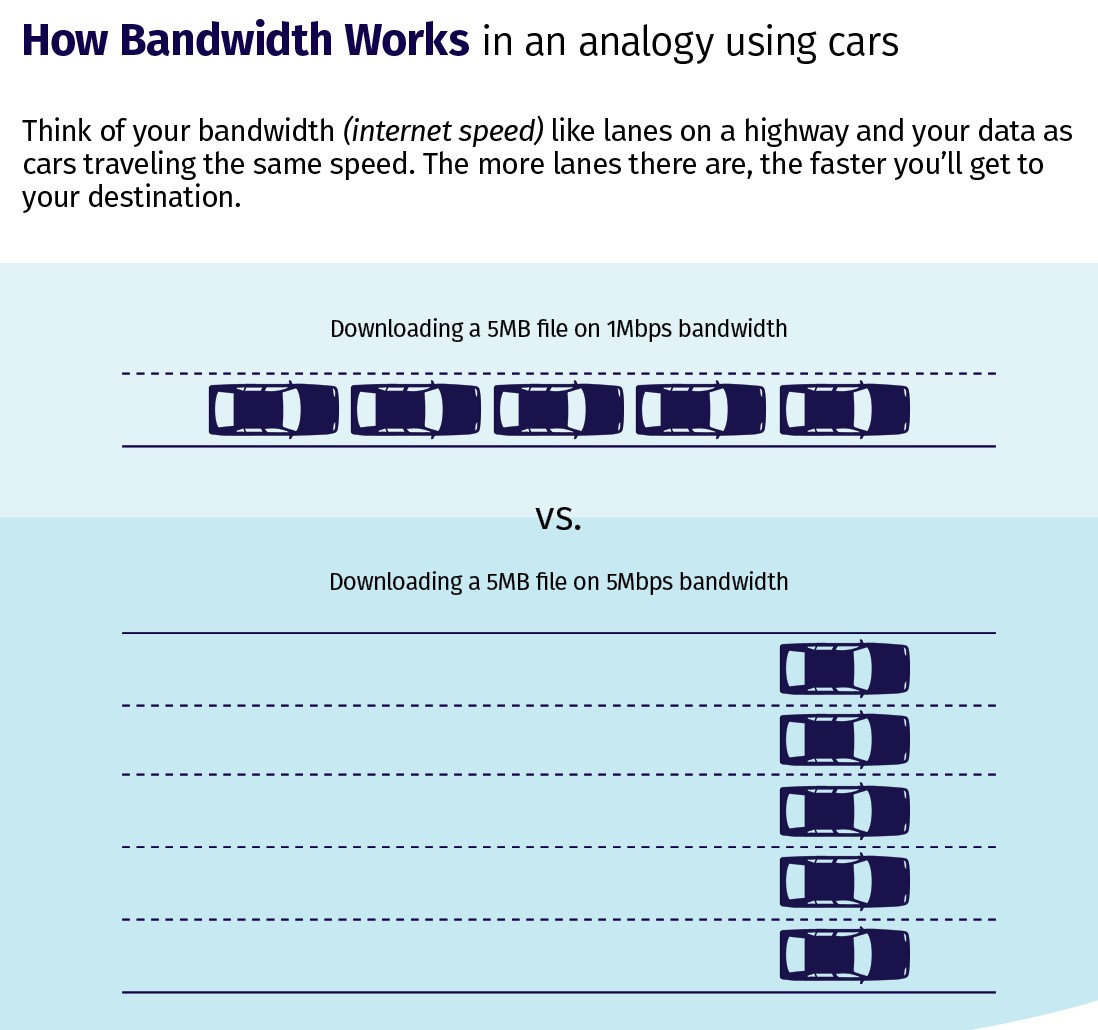

Bandwidth Analogy (Highway Example)

Bandwidth vs Throughput Highway Analogy

📶 What is Bandwidth?

Bandwidth is the maximum data capacity of a network link.

📌 It tells:
  • How much data can be sent
❌ Not how much is actually sent

🔧 Bandwidth is Measured in

• bps (bits per second)
• Mbps
• Gbps

🧠 Easy Example

Your internet plan says:
100 Mbps

👉 This is bandwidth, not guaranteed speed

🚀 What is Throughput?

Throughput is the actual amount of data successfully transferred per second.

📌 Throughput depends on:
  • Network congestion
  • Distance
  • Hardware quality
  • Protocol overhead (TCP/IP)
  • Errors & retransmissions

🧠 Easy Example

You have 100 Mbps bandwidth,
but download speed is:

65 Mbps

👉 65 Mbps = Throughput

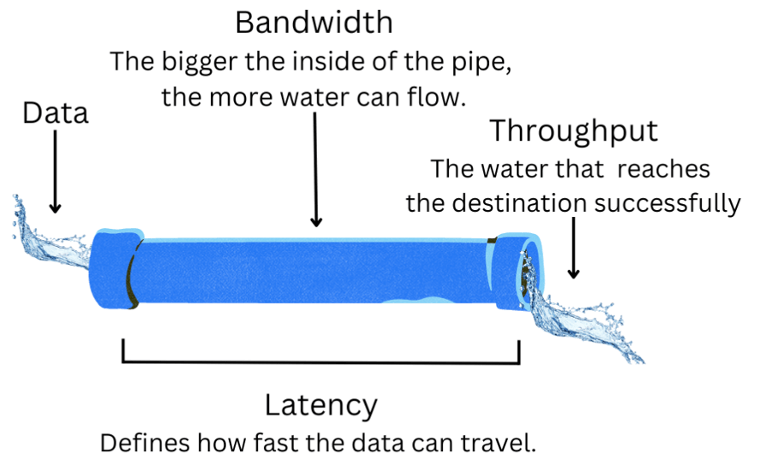

Bandwidth vs Throughput Diagram

Bandwidth vs Throughput Diagram

🧩 Bandwidth vs Throughput (Side-by-Side)

Feature Bandwidth Throughput
Meaning Maximum capacity Actual speed
Nature Theoretical Practical
Changes? Usually fixed Changes often
Affected by traffic ❌ No ✅ Yes
Exam trap Confused with speed Real speed

📌 Exam Tip:
Speed test shows throughput, not bandwidth

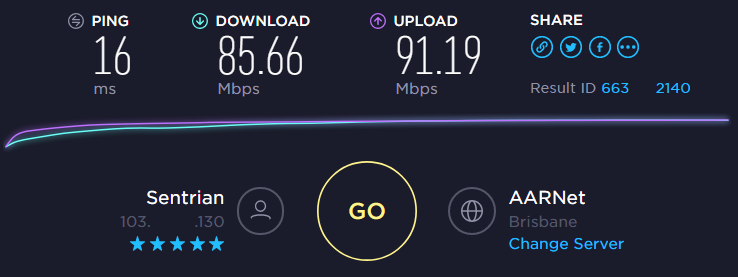

Speed Test Shows Throughput

Internet Speed Test Throughput

🔄 Why Throughput is Always Less than Bandwidth

Common reasons:
  • 🚦 Network congestion
  • 📦 Protocol overhead (TCP/IP headers)
  • ❌ Packet loss
  • 📡 Wi-Fi interference
  • 🧱 Old or weak hardware
📌 High bandwidth ≠ High throughput

🛠️ CCST Troubleshooting Scenario (Real-Life)

❌ User says:
“I have a 200 Mbps plan, but internet is slow”

Your Technician Logic:
1️⃣ Bandwidth is OK (ISP plan)
2️⃣ Check throughput
3️⃣ Possible issues:
  • Too many connected users
  • Wi-Fi interference
  • Old router
  • Background downloads
✔ You now sound like a real support technician 👨‍💻
🧠 Memory Tricks (Quick Recall)

Bandwidth = Pipe size
Throughput = Water flow
✅ CCST Exam Must-Knows

✔ Bandwidth = Maximum capacity
✔ Throughput = Actual performance
✔ Throughput ≤ Bandwidth
✔ Wi-Fi often reduces throughput
✔ Speed test shows throughput, not bandwidth

Latency, Delay & Jitter

⭐ CCST GOLD LINE (Remember This!)

Latency = Time delay
Bandwidth = How much data
Throughput = How fast data actually moves

🚦 Real-World Analogy (VERY IMPORTANT 💡)

🚚 Courier Delivery Example

Real Life Networking
Time taken by courier Latency
Number of parcels truck can carry Bandwidth
Parcels delivered per hour Throughput
Irregular delivery times Jitter

📌 Big truck → High bandwidth
📌 Fast road → Low latency
📌 Traffic & signals cause delay and jitter

Latency Explained (Network Delay)

Network Latency Diagram

⏱️ What is Latency?

Latency is the time taken for data to travel from sender to receiver.

📌 Measured in:
Milliseconds (ms)

🧠 Easy Example

You click a website
Page opens after 200 ms

👉 200 ms = latency

🔧 Typical Latency Values

0–20 ms → Excellent
20–50 ms → Good
50–100 ms → Acceptable
>100 ms → Slow / noticeable delay

📌 Online gaming & video calls need low latency

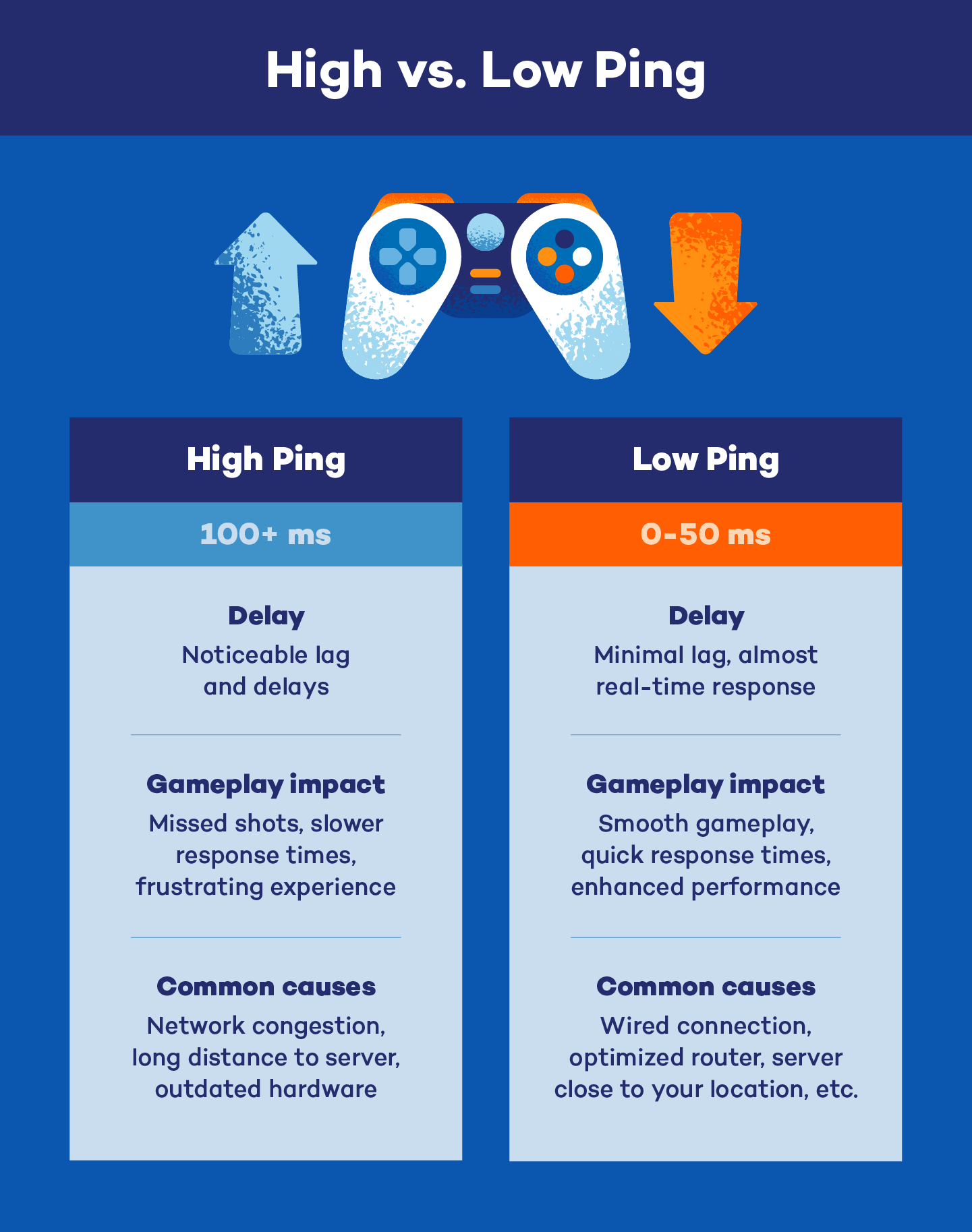

High Ping vs Low Ping

High Ping vs Low Ping

🕒 What is Delay?

Delay is the total waiting time data experiences.

Delay includes:
  • Processing delay (device thinking time)
  • Queuing delay (waiting in line)
  • Transmission delay (sending bits)
  • Propagation delay (distance)
👉 In simple terms:
Delay = All types of waiting combined
📌 Many books use latency and delay interchangeably (CCST safe)

📉 What is Jitter?

Jitter is the variation in latency over time.

📌 If packets arrive:
  • Sometimes fast
  • Sometimes slow
👉 That variation is jitter

🧠 Easy Example

🎧 Voice call audio:
“Hello … … are … you … there?”

📌 Audio breaks because packets arrive unevenly
👉 This is a jitter problem

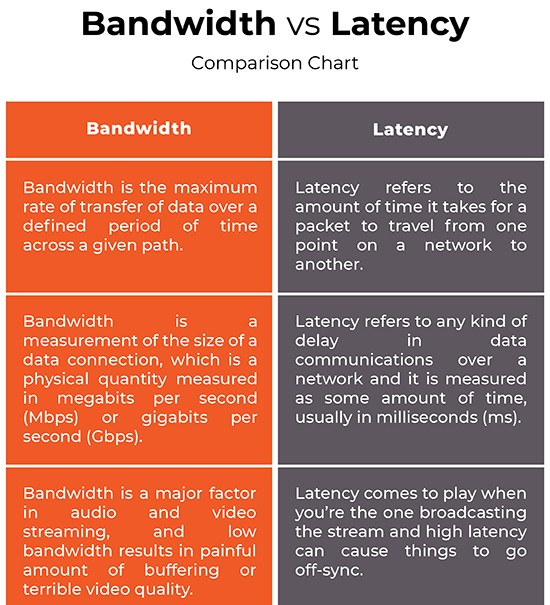

Bandwidth vs Latency

Bandwidth vs Latency

🧩 Latency vs Delay vs Jitter (Side-by-Side)

Term Meaning Problem Causes
Latency Time delay Distance, routing
Delay Total waiting time Congestion, processing
Jitter Uneven delay Network instability

🎮 Why Latency Matters (Real Uses)

Activity Needs
Online gaming Low latency
Video calls Low latency + low jitter
File download High throughput
Streaming Low jitter
📌 Speed alone is not enough!

🛠️ CCST Troubleshooting Scenario

❌ User complaint:
“Internet speed is good but video call is lagging”

Technician Thinking:
✔ Bandwidth is OK
❌ Latency or jitter issue

Possible reasons:
  • Wi-Fi interference
  • Too many users
  • Long distance server
🧠 Memory Tricks (Exam Ready)

Latency = How long it takes
Delay = Waiting time
Jitter = Uneven arrival

Or simply:
Latency = delay, Jitter = unstable delay
✅ CCST Exam Must-Knows

✔ Low latency = fast response
✔ High latency = slow reaction
✔ Jitter affects voice & video
✔ Speed test ≠ latency test
✔ Ping command checks latency

Speed Test vs iPerf

⭐ CCST GOLD LINE (Remember This!)

Speed Test → Tests internet speed (ISP side)
iPerf → Tests network performance (your network)

👉 This line alone solves many troubleshooting questions ✅

🚦 Why Do We Need Speed Testing?

As a network technician, users often complain:

❌ “Internet is slow”
❌ “Speed is not as promised”
❌ “Network performance is bad”

To find the real issue, we must know: Is the problem with ISP or inside the local network?

📊 What is a Speed Test?

A Speed Test measures the speed of your internet connection between your device and an external server on the internet.

🔧 What Speed Test checks:
  • Download speed
  • Upload speed
  • Ping (latency)
📌 Common tools:
  • Speedtest.net
  • Fast.com
  • Google Speed Test

🧠 Easy Example

Your internet plan: 200 Mbps
Speed test result: 180 Mbps

👉 ISP is working fine
📌 Speed Test result depends on:
  • ISP quality
  • Distance to server
  • Internet congestion

📈 What is iPerf?

iPerf is a professional network testing tool used to measure actual throughput inside a network.

🔧 What iPerf checks:
  • Bandwidth between two devices
  • Throughput
  • Packet loss
  • Jitter (for UDP)
📌 iPerf works in:
  • LAN (Local Area Network)
  • WAN
  • Data centers

🧠 Easy Example

Speed Test shows: 200 Mbps
iPerf shows: 60 Mbps

👉 Problem is inside the local network (Wi-Fi, cable, switch)

🧩 Speed Test vs iPerf (Side-by-Side)

Feature Speed Test iPerf
Tests Internet speed Network performance
Server location On the internet Inside your network
Measures Download / Upload / Ping Throughput / Jitter / Packet loss
Used by Normal users Network engineers
Detects LAN issues ❌ No ✅ Yes
CCST relevance Basic Very important

🛠️ CCST Troubleshooting Scenario (VERY IMPORTANT)

❌ User says:
“Internet speed is fine, but file transfer inside office is slow”

Technician Logic:
✔ Speed Test → OK
❌ iPerf → Low throughput

👉 Issue is inside:
  • Wi-Fi interference
  • Bad cable
  • Old switch
  • Network congestion
🧠 Memory Trick (Exam Ready)

Speed Test = ISP check 🌍
iPerf = Network check 🏠
✅ CCST Exam Must-Knows

✔ Speed Test checks internet speed
✔ iPerf checks internal network performance
✔ Good Speed Test + Bad iPerf = LAN problem
✔ iPerf is used by network engineers
✔ Speed Test ≠ network performance test
